| Mazak - QTS200M |
225 |
68 |
40 |
34/34 |
45/65 |
9 |
QTS200M |
490.137.00201
|

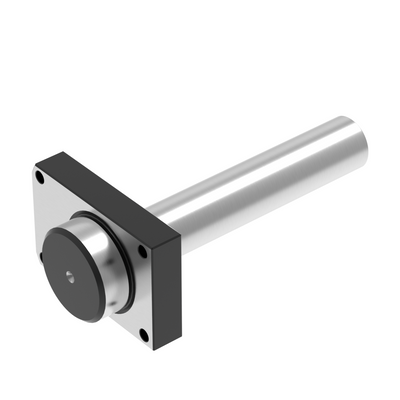

Mazak - QTS200M
Lathe Turret Alignment Bar for Mazak QTS200M Includes storage case and certificate
L
225
D1
68
D2
40
A1/A2
34/34
B1/B2
45/65
D
9
Interface/Models
QTS200M
Part Number
490.137.00201
View details
|
| Special Configuration - 89442 |
300 |
N/A |
50 |
38/38 |
35/35 |
13 |
N/A |
490.137.89442
|

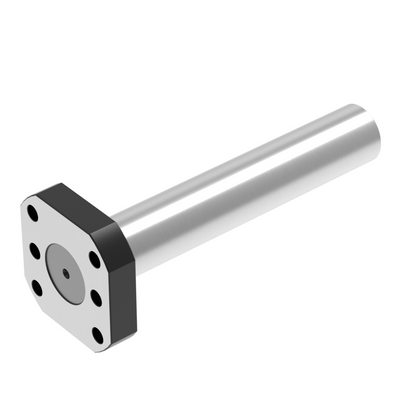

Special Configuration - 89442
Lathe turret test bars provide an easy way to verify turret perpendicularity. Bars are installed in the turret like a standard tool. Test bars have an accuracy of 0.003mm (0.00012 inch) and include a carrying case and certificate.
L
300
D1
N/A
D2
50
A1/A2
38/38
B1/B2
35/35
D
13
Interface/Models
N/A
Part Number
490.137.89442
View details
|
| Lathe |
200 |
44 |
40 |
20/20 |
27.5/27.5 |
8.5 |
N/A |
490.137.88752
|
Lathe
Lathe turret test bars provide an easy way to verify turret perpendicularity. Bars are installed in the turret like a standard tool. Test bars have an accuracy of 0.003mm (0.00012 inch) and include a carrying case and certificate.
L
200
D1
44
D2
40
A1/A2
20/20
B1/B2
27.5/27.5
D
8.5
Interface/Models
N/A
Part Number
490.137.88752
View details
|
| Lathe |
215 |
68 |
40 |
34/34 |
45/65 |
8.5 |
- |
490.137.87223
|
Lathe
Lathe turret test bars provide an easy way to verify turret perpendicularity. Bars are installed in the turret like a standard tool. Test bars have an accuracy of 0.003mm (0.00012 inch) and include a carrying case and certificate.
L
215
D1
68
D2
40
A1/A2
34/34
B1/B2
45/65
D
8.5
Interface/Models
-
Part Number
490.137.87223
View details
|
| Lathe |
200 |
55 |
50 |
25/25 |
30/30 |
12 |
- |
490.137.86338.1
|
Lathe
Lathe turret test bars provide an easy way to verify turret perpendicularity. Bars are installed in the turret like a standard tool. Test bars have an accuracy of 0.003mm (0.00012 inch) and include a carrying case and certificate.
L
200
D1
55
D2
50
A1/A2
25/25
B1/B2
30/30
D
12
Interface/Models
-
Part Number
490.137.86338.1
View details
|
| Lathe |
300 |
55 |
50 |
25/25 |
30/30 |
12 |
- |
490.137.86338
|
Lathe
Lathe turret test bars provide an easy way to verify turret perpendicularity. Bars are installed in the turret like a standard tool. Test bars have an accuracy of 0.003mm (0.00012 inch) and include a carrying case and certificate.
L
300
D1
55
D2
50
A1/A2
25/25
B1/B2
30/30
D
12
Interface/Models
-
Part Number
490.137.86338
View details
|
| Lathe |
300 |
60 |
50 |
42/42 |
47/47 |
13 |
- |
490.137.79807
|
Lathe
Lathe turret test bars provide an easy way to verify turret perpendicularity. Bars are installed in the turret like a standard tool. Test bars have an accuracy of 0.003mm (0.00012 inch) and include a carrying case and certificate.
L
300
D1
60
D2
50
A1/A2
42/42
B1/B2
47/47
D
13
Interface/Models
-
Part Number
490.137.79807
View details
|
| Biglia |
220 |
55 |
40 |
31.5/31.5 |
32.5/32.5 |
11 |
B301/445/470/501(Y-S)/510/545/550/565/650/658 1200/446/465/745/765-B750/1250 16 ST BV210/315 |
490.137.00209
|
Biglia
Lathe turret test bars provide an easy way to verify turret perpendicularity. Bars are installed in the turret like a standard tool. Test bars have an accuracy of 0.003mm (0.00012 inch) and include a carrying case and certificate.
L
220
D1
55
D2
40
A1/A2
31.5/31.5
B1/B2
32.5/32.5
D
11
Interface/Models
B301/445/470/501(Y-S)/510/545/550/565/650/658 1200/446/465/745/765-B750/1250 16 ST BV210/315
Part Number
490.137.00209
View details
|
| Mazak |
300 |
65 |
50 |
36/36 |
60/85 |
11 |
QTS300M |
490.137.00202
|
Mazak
Lathe turret test bars provide an easy way to verify turret perpendicularity. Bars are installed in the turret like a standard tool. Test bars have an accuracy of 0.003mm (0.00012 inch) and include a carrying case and certificate.
L
300
D1
65
D2
50
A1/A2
36/36
B1/B2
60/85
D
11
Interface/Models
QTS300M
Part Number
490.137.00202
View details
|
| DMG Mori - CTX310ECO-BMT / NZ1500 / NZ2000 |
220 |
40 |
40 |
31/31 |
35/35 |
11 |
CTX310ECO-BMT / NZ1500 / NZ2000 |
490.137.00193
|

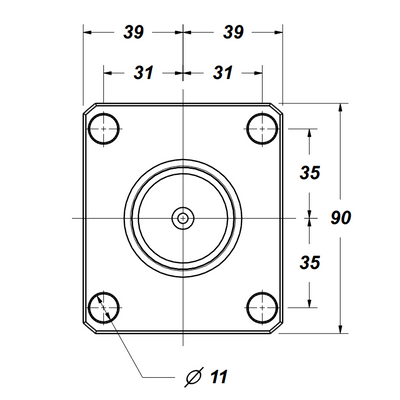

DMG Mori - CTX310ECO-BMT / NZ1500 / NZ2000
Lathe turret test bars provide an easy way to verify turret perpendicularity. Bars are installed in the turret like a standard tool. Test bars have an accuracy of 0.003mm (0.00012 inch) and include a carrying case and certificate.
L
220
D1
40
D2
40
A1/A2
31/31
B1/B2
35/35
D
11
Interface/Models
CTX310ECO-BMT / NZ1500 / NZ2000
Part Number
490.137.00193
View details
|
| Doosan |
300 |
75 |
50 |
45/45 |
45/45 |
13 |
BMT75 • PUMA400-480M/LM/XLM-VT 750M/TM |
490.137.00200
|
Doosan
Lathe Turret Alignment Bar for Mazak QTS200M Includes storage case and certificate
L
300
D1
75
D2
50
A1/A2
45/45
B1/B2
45/45
D
13
Interface/Models
BMT75 • PUMA400-480M/LM/XLM-VT 750M/TM
Part Number
490.137.00200
View details
|
| Doosan |
300 |
65 |
50 |
36.5/36.5 |
35/35 |
13 |
BMT65 • PUMA300M/MS-V400M-TT2000SY-TT2500SY TT2500MS-2600/3100 Series / MX2000ST-MX2500T/ST/LST-VT450/TM Inverturn 3000M |
490.137.00199
|
Doosan
Lathe turret test bars provide an easy way to verify turret perpendicularity. Bars are installed in the turret like a standard tool. Test bars have an accuracy of 0.003mm (0.00012 inch) and include a carrying case and certificate.
L
300
D1
65
D2
50
A1/A2
36.5/36.5
B1/B2
35/35
D
13
Interface/Models
BMT65 • PUMA300M/MS-V400M-TT2000SY-TT2500SY TT2500MS-2600/3100 Series / MX2000ST-MX2500T/ST/LST-VT450/TM Inverturn 3000M
Part Number
490.137.00199
View details
|
| Doosan |
220 |
45 |
40 |
29/29 |
29/29 |
9 |
BMT55 • PUMA230-240M / MS-280LM-1500-2000-2500M/MS/S/SY 2100 SERIES-TT1500-TT1800MS/SY / TL2000-2500LM-MX1600/2100TS LYNX 300M |
490.137.00198
|
Doosan
Lathe turret test bars provide an easy way to verify turret perpendicularity. Bars are installed in the turret like a standard tool. Test bars have an accuracy of 0.003mm (0.00012 inch) and include a carrying case and certificate.
L
220
D1
45
D2
40
A1/A2
29/29
B1/B2
29/29
D
9
Interface/Models
BMT55 • PUMA230-240M / MS-280LM-1500-2000-2500M/MS/S/SY 2100 SERIES-TT1500-TT1800MS/SY / TL2000-2500LM-MX1600/2100TS LYNX 300M
Part Number
490.137.00198
View details
|
| Doosan |
220 |
45 |
40 |
29/29 |
29/29 |
9 |
BMT45 • LYNX 220LM |
490.137.00197
|
Doosan
Lathe turret test bars provide an easy way to verify turret perpendicularity. Bars are installed in the turret like a standard tool. Test bars have an accuracy of 0.003mm (0.00012 inch) and include a carrying case and certificate.
L
220
D1
45
D2
40
A1/A2
29/29
B1/B2
29/29
D
9
Interface/Models
BMT45 • LYNX 220LM
Part Number
490.137.00197
View details
|
| Okuma |
300 |
60 |
50 |
39/39 |
40/40 |
13 |
LB4000 EX (M, MY) |
490.137.00196
|
Okuma
Lathe turret test bars provide an easy way to verify turret perpendicularity. Bars are installed in the turret like a standard tool. Test bars have an accuracy of 0.003mm (0.00012 inch) and include a carrying case and certificate.
L
300
D1
60
D2
50
A1/A2
39/39
B1/B2
40/40
D
13
Interface/Models
LB4000 EX (M, MY)
Part Number
490.137.00196
View details
|
| Okuma |
300 |
60 |
50 |
36.5/36.5 |
26/39 |
14 |
LB2000 EX (M, MY) / LB2500 EX (M) LB3000 EX (M, MY) / LB3000 EX (MW, MYW) |
490.137.00195
|
Okuma
Lathe turret test bars provide an easy way to verify turret perpendicularity. Bars are installed in the turret like a standard tool. Test bars have an accuracy of 0.003mm (0.00012 inch) and include a carrying case and certificate.
L
300
D1
60
D2
50
A1/A2
36.5/36.5
B1/B2
26/39
D
14
Interface/Models
LB2000 EX (M, MY) / LB2500 EX (M) LB3000 EX (M, MY) / LB3000 EX (MW, MYW)
Part Number
490.137.00195
View details
|
| DMG Mori |
300 |
59.94 |
50 |
32.6/32.6 |
40.2/35.1 |
14 |
TL-40Y/4000 |
490.137.00283
|
DMG Mori
Lathe turret test bars provide an easy way to verify turret perpendicularity. Bars are installed in the turret like a standard tool. Test bars have an accuracy of 0.003mm (0.00012 inch) and include a carrying case and certificate.
L
300
D1
59.94
D2
50
A1/A2
32.6/32.6
B1/B2
40.2/35.1
D
14
Interface/Models
TL-40Y/4000
Part Number
490.137.00283
View details
|
| DMG Mori |
300 |
60 |
50 |
42/42 |
47/47 |
13 |
NLX1500-NLX2000 / NLX2500-NLX3000 NL2000 (S)MC-2500 (S)MC / NL3000MC (12 Stations) |
490.137.00194
|
DMG Mori
Lathe turret test bars provide an easy way to verify turret perpendicularity. Bars are installed in the turret like a standard tool. Test bars have an accuracy of 0.003mm (0.00012 inch) and include a carrying case and certificate.
L
300
D1
60
D2
50
A1/A2
42/42
B1/B2
47/47
D
13
Interface/Models
NLX1500-NLX2000 / NLX2500-NLX3000 NL2000 (S)MC-2500 (S)MC / NL3000MC (12 Stations)
Part Number
490.137.00194
View details
|
