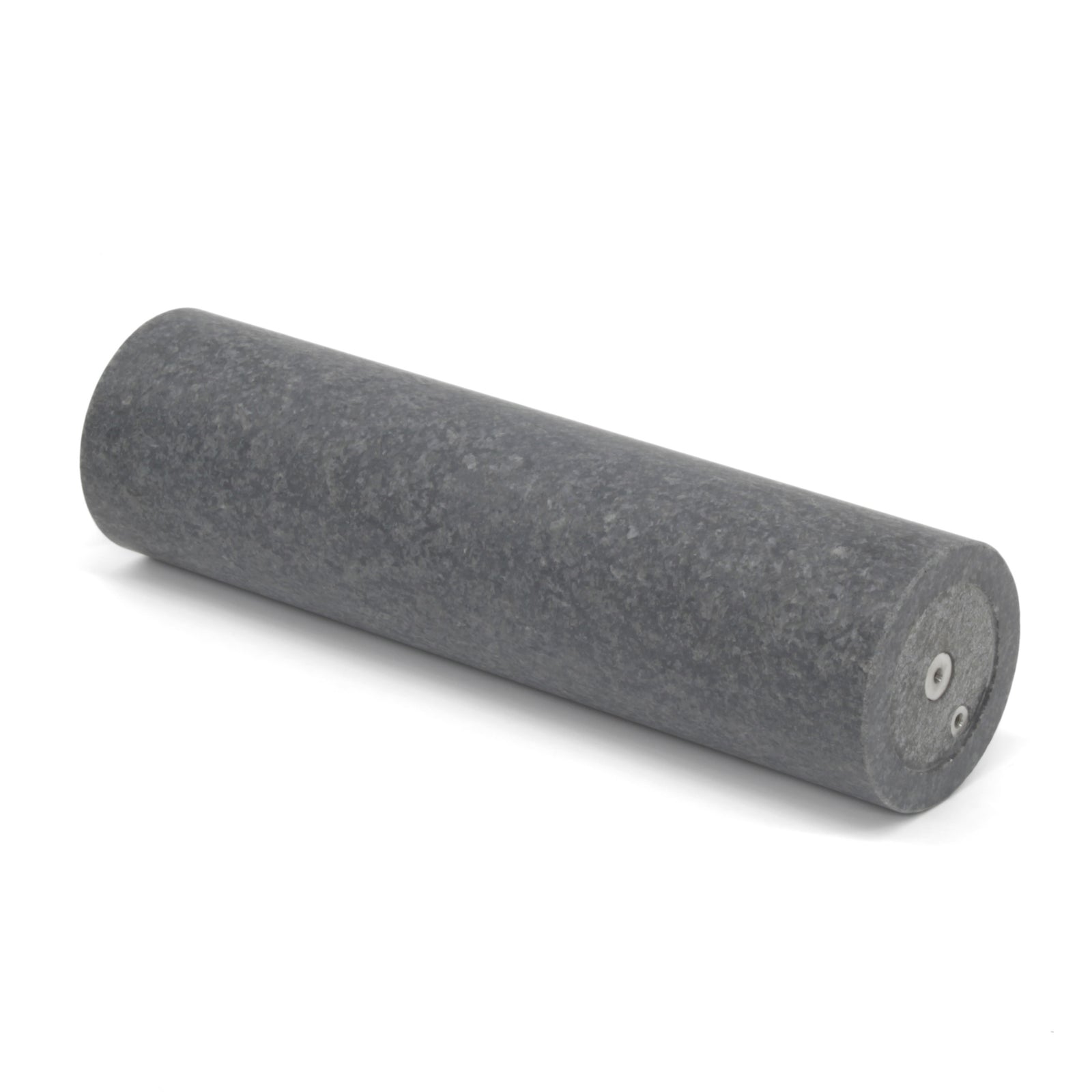

Präzisions Messsäulen, Natur-Hartgestein

TAC Messtechnik Präzisions-Messsäulen aus Natur-Hartgestein sind der Standard für die Überprüfung von Rechtwinkligkeit, Geradheit und Rundlauf kritischer Maschinenachsen an Hochpräzisionswerkzeugmaschinen und Koordinatenmessgeräten (KMG). Hergestellt aus ausgewähltem, hochdichtem schwarzem Granit, bieten diese Säulen eine unübertroffene Dimensionsstabilität und thermische Trägheit, was sie für die anspruchsvollsten Messtechnikanwendungen unverzichtbar macht.

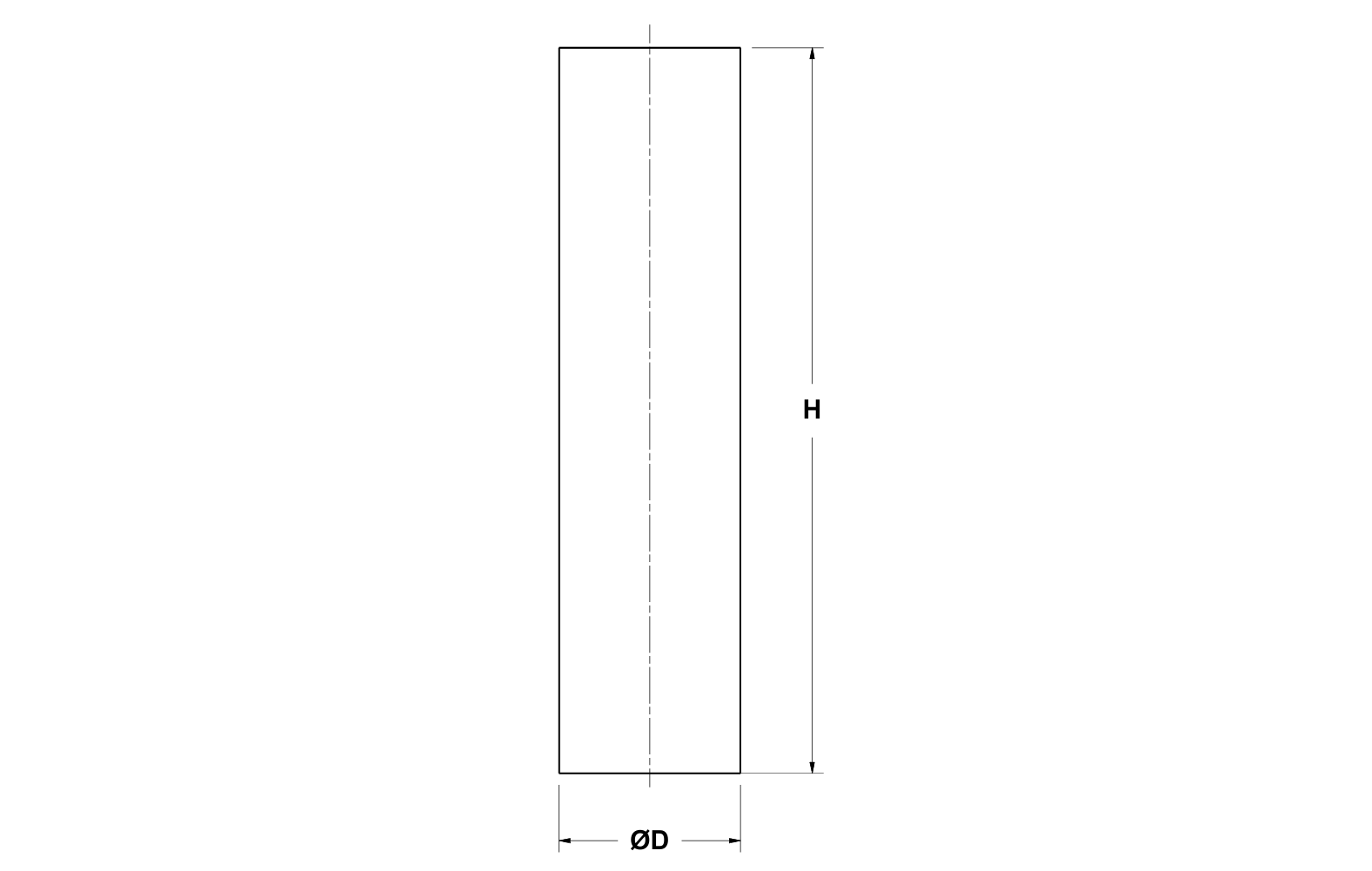

Präzisions Messsäulen, Natur-Hartgestein Datasheet

Produkte filtern

H (mm)

D (mm)

Rechtwinkligkeit ⊥

Zylinderformtoleranz ⌭

Net Kg

Präzisions Messsäulen, Natur-Hartgestein	H (mm)	D (mm)	Rechtwinkligkeit ⊥	Zylinderformtoleranz ⌭	Net Kg	Artikelnummer
200 x 70	200	70	2.0 µm	2.0 µm	2.3	451.CG0.200.070
200 x 70 TAC Messtechnik precision Granite Master Cylinders are the standard for verifying the perpendicularity, straightness, and runout of critical machine axes on high-precision machine tools and CMMs. Manufactured from select, high-density black granite, these cylinders offer unmatched dimensional stability and thermal inertness, making them essential for the most demanding metrology applications. Standard sizes range from 200mm (7.87in) to 800mm (31.5") in height. Custom diameters, heights, and other special versions available upon request - contact our engineering team for specialized configurations. H (mm) 200 D (mm) 70 Rechtwinkligkeit ⊥ 2.0 µm Zylinderformtoleranz ⌭ 2.0 µm Net Kg 2.3 Artikelnummer 451.CG0.200.070 Details anzeigen
300 x 80	300	80	3.0 µm	3.0 µm	4.5	451.CG0.300.080
300 x 80 TAC Messtechnik precision Granite Master Cylinders are the standard for verifying the perpendicularity, straightness, and runout of critical machine axes on high-precision machine tools and CMMs. Manufactured from select, high-density black granite, these cylinders offer unmatched dimensional stability and thermal inertness, making them essential for the most demanding metrology applications. Standard sizes range from 200mm (7.87in) to 800mm (31.5") in height. Custom diameters, heights, and other special versions available upon request - contact our engineering team for specialized configurations. H (mm) 300 D (mm) 80 Rechtwinkligkeit ⊥ 3.0 µm Zylinderformtoleranz ⌭ 3.0 µm Net Kg 4.5 Artikelnummer 451.CG0.300.080 Details anzeigen
400 x 100	400	100	4.0 µm	4.0 µm	9.5	451.CG0.400.100
400 x 100 TAC Messtechnik precision Granite Master Cylinders are the standard for verifying the perpendicularity, straightness, and runout of critical machine axes on high-precision machine tools and CMMs. Manufactured from select, high-density black granite, these cylinders offer unmatched dimensional stability and thermal inertness, making them essential for the most demanding metrology applications. Standard sizes range from 200mm (7.87in) to 800mm (31.5") in height. Custom diameters, heights, and other special versions available upon request - contact our engineering team for specialized configurations. H (mm) 400 D (mm) 100 Rechtwinkligkeit ⊥ 4.0 µm Zylinderformtoleranz ⌭ 4.0 µm Net Kg 9.5 Artikelnummer 451.CG0.400.100 Details anzeigen
500 x 120	500	120	5.0 µm	5.0 µm	17	451.CG0.500.120
500 x 120 TAC Messtechnik precision Granite Master Cylinders are the standard for verifying the perpendicularity, straightness, and runout of critical machine axes on high-precision machine tools and CMMs. Manufactured from select, high-density black granite, these cylinders offer unmatched dimensional stability and thermal inertness, making them essential for the most demanding metrology applications. Standard sizes range from 200mm (7.87in) to 800mm (31.5") in height. Custom diameters, heights, and other special versions available upon request - contact our engineering team for specialized configurations. H (mm) 500 D (mm) 120 Rechtwinkligkeit ⊥ 5.0 µm Zylinderformtoleranz ⌭ 5.0 µm Net Kg 17 Artikelnummer 451.CG0.500.120 Details anzeigen
800 x 160	800	160	6.0 µm	6.0 µm	35	451.CG0.800.160
800 x 160 TAC Messtechnik precision Granite Master Cylinders are the standard for verifying the perpendicularity, straightness, and runout of critical machine axes on high-precision machine tools and CMMs. Manufactured from select, high-density black granite, these cylinders offer unmatched dimensional stability and thermal inertness, making them essential for the most demanding metrology applications. Standard sizes range from 200mm (7.87in) to 800mm (31.5") in height. Custom diameters, heights, and other special versions available upon request - contact our engineering team for specialized configurations. H (mm) 800 D (mm) 160 Rechtwinkligkeit ⊥ 6.0 µm Zylinderformtoleranz ⌭ 6.0 µm Net Kg 35 Artikelnummer 451.CG0.800.160 Details anzeigen
