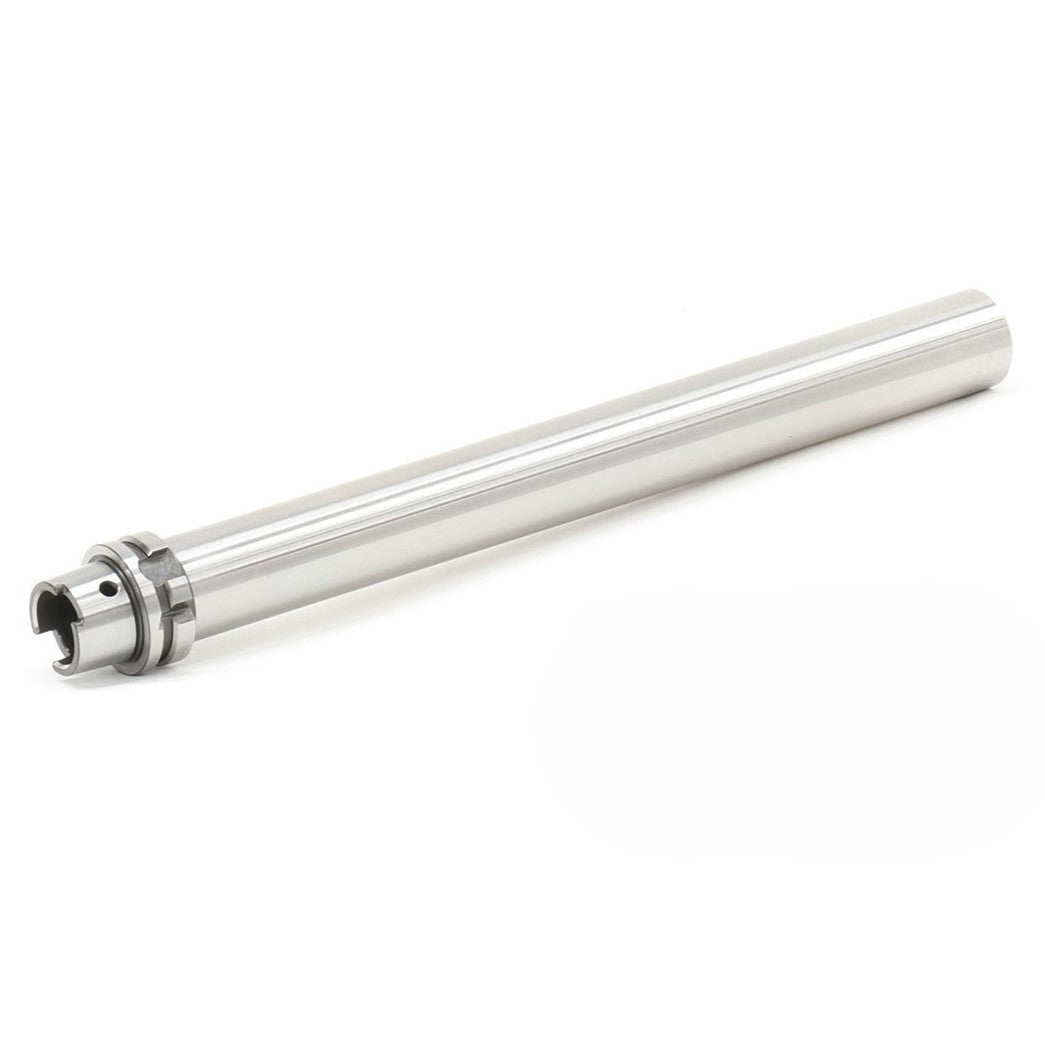

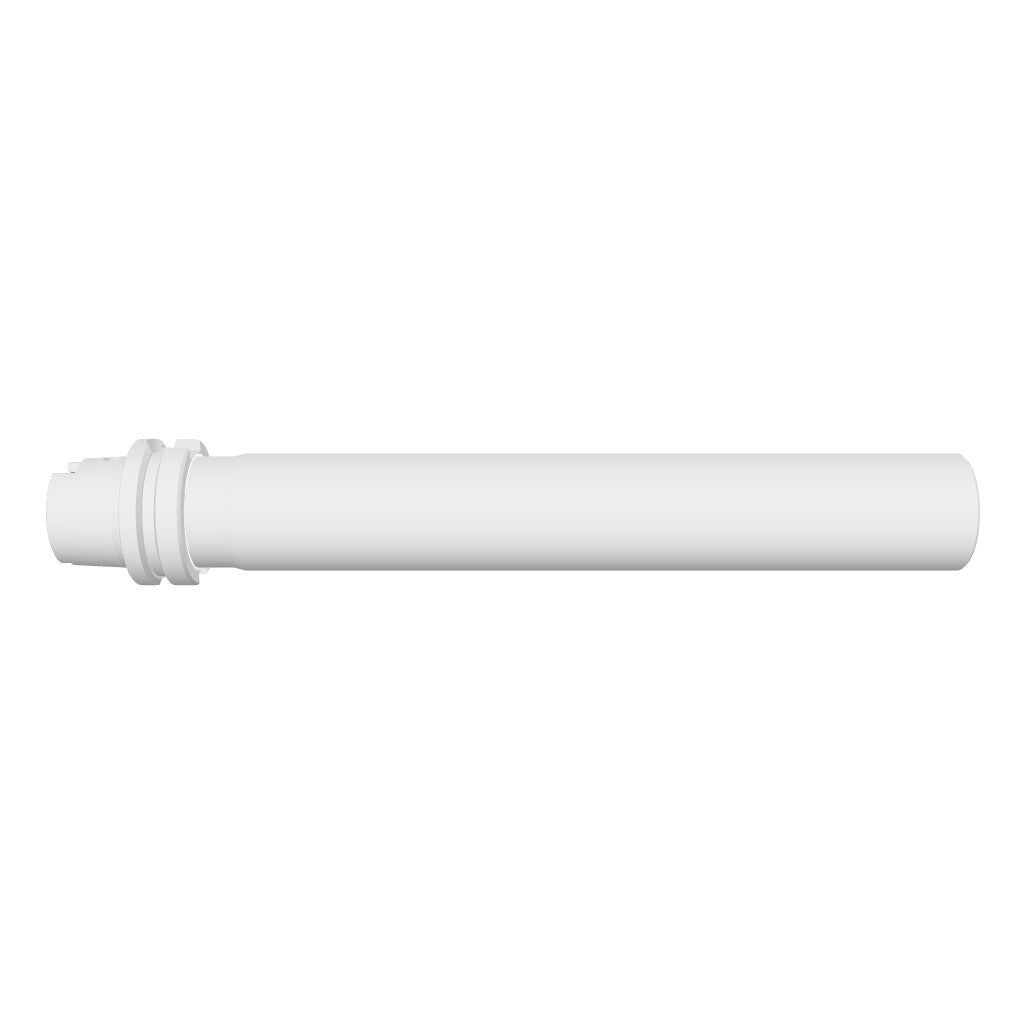

HSK-A/C/E 25 Runout Arbor

Part Number: 465.125.000.000

Specifications

Gauge Length (L): 140 mm

Gauge Diameter (D): 20 mm

Runout (R): ≤ 0.005 mm

Standard: DIN 69893 / ISO 12164 / ASME B5.62

Taper Configuration: HSK-A/C/E 25

  • Part Number 465.125.000.000



TAC Messtechnik Contact Details

Email +49 7563 6089560

A certificate of accuracy is included. Traceable certificates available; contact us for details.

Contact us for other lengths, tapers, and other special requirements.

Carrying cases are not included. Visit Data Sheet 465.006 for available case styles.
  • PDF Data Sheet: EN

Related Products

Runout Arbor Carrying Cases

Runout Arbor Carrying Cases

Ball-End Test Arbors

Ball-End Test Arbors

Lathe Turret Alignment Bars

Lathe Turret Alignment Bars

Runout Arbors for Centers (490.520)

Runout Arbors for Centers (490.520)

Wired Drawbar Force Gauges (461.200)

Wired Drawbar Force Gauges (461.200)

Spindle Dimensional

Spindle Dimensional

Spindle Balancing

Spindle Balancing

Service Kits (403.ServiceKit)

Service Kits (403.ServiceKit)

Example product title

In stock
inc. VAT

Example product title

In stock
inc. VAT

Example product title

In stock
inc. VAT

Example product title

In stock
inc. VAT

Example product title

In stock
inc. VAT

Example product title

In stock
inc. VAT

Example product title

In stock
inc. VAT

Example product title

In stock
inc. VAT

Example product title

In stock
inc. VAT

Example product title

In stock
inc. VAT

Example product title

In stock
inc. VAT

Example product title

In stock
inc. VAT
Spindle Runout Arbors

Spindle Runout Arbors

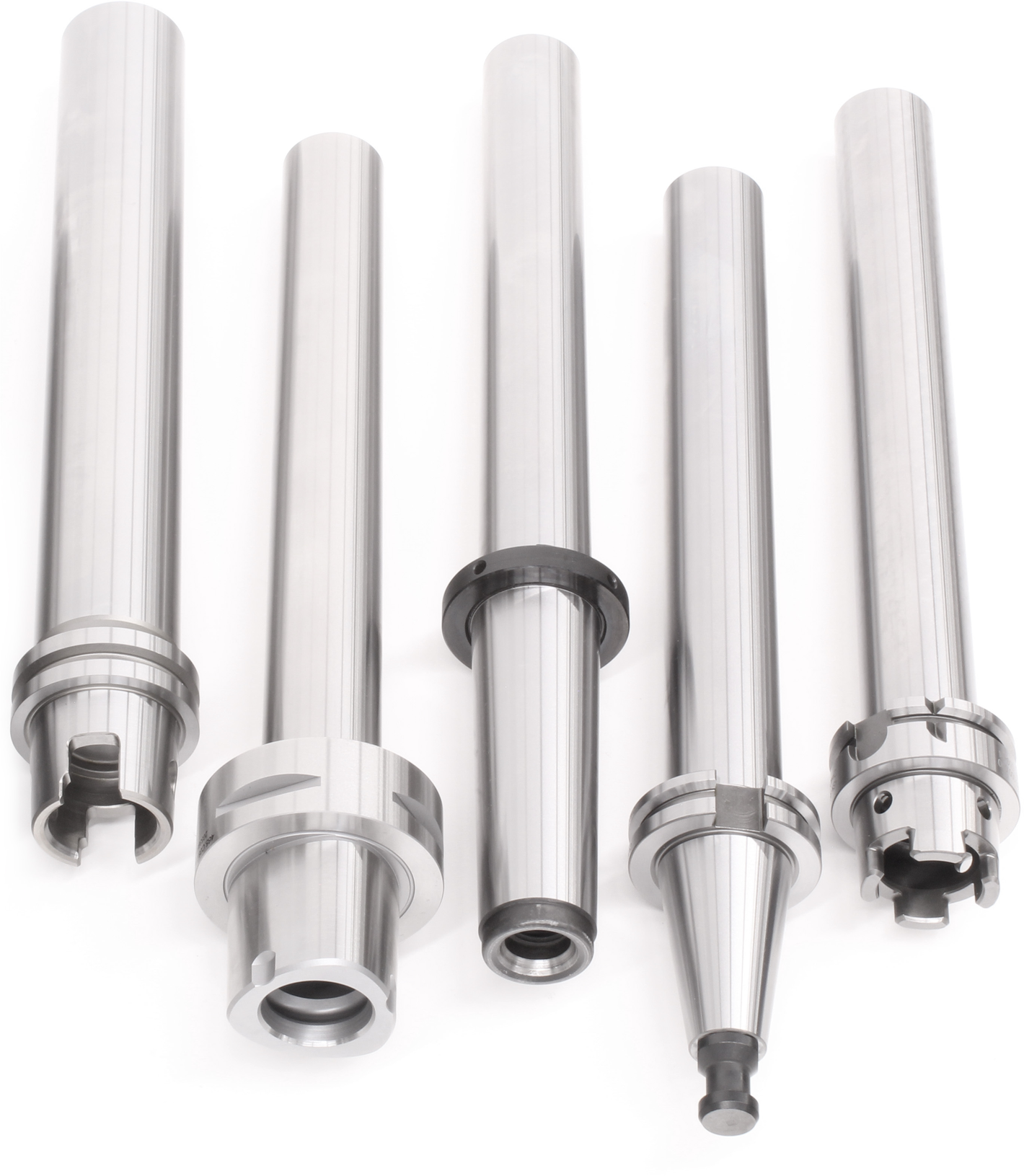

Spindle runout arbors offer a quick and easy way to verify that a machine spindle is running true after a crash, after a machine has been moved, or periodically as a performance check. Arbors are available for all major machine tapers, including CAT/DIN/BT Steep Taper, HSK, PSC, Morse, and others.
